eta-series

ETA SERIES

High Capacity End Suction Pump

carver

Hydraulic performance for the ETA extends to 9,500 GPM and 360 feet of head. This range is covered by thirteen sizes in cast iron and bronze-fitted iron as the standard, off-the-shelf materials with higher alloys also available.

All ETA’s feature large stuffing boxes, high efficiency enclosed impellers, oil or grease lubricated bearing frames, and replaceable wear rings as standard. Common options include double, tandem, and cartridge seals, seal flush plans, API style baseplates, and spacer couplings. Full performance testing to Hydraulic Institute Standards is also available.

Hydraulics

  • Flows to 10,000 GPM (2,270 m3/hr)
  • Heads to 360 ft. (110 m)
  • Efficiencies to 88%
  • Power to 500 HP (375 KW)
  • Speeds to 1,750 RPM
  • Temperatures to 250° F (120° C)

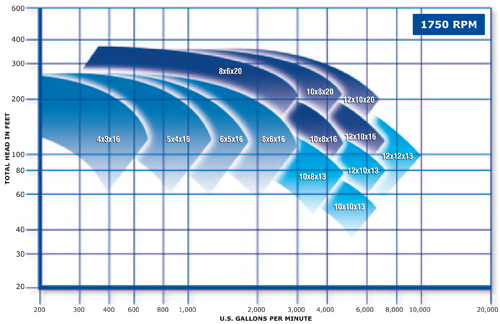

Hydraulic Coverage – Curve Process

carver_pump_eta_series_curve

  • Cooling tower water recirculation
  • Fire fighting systems
  • Ground water evacuation
  • Irrigation supply
  • Light hydrocarbon transfer
  • Mine dewatering
  • Municipal water supply
  • Raw water supply
  • Refinery off-site loading and transfer
  • Solvents transfer
  • Wastewater treatment systems
  • Alimentación de redes de acueducto en plantas industriales
