• Flow: Up to 87 GPH
• Pressure: Up to 3.000 PSI
• Viscosity: Up to 7,500 cP (Up to 12,200 cP with mROY® Series P)
• Temperature: Up to 90⁰C.
• Local-manual operation.


BENEFITS:

• Minimizes maintenance costs and production downtime due to faults or breaks in flow lines due to corrosion or fouling.
• Friendly and safe for the operator during installation, operation (mechanical and electrical), maintenance and cleaning.
• Reduces the environmental impact that is generated by chemical spills.
• It has the technical support of our organization with more than 30 years of experience in the design and manufacture of solutions for handling, control, metering and mixing of fluids.
• Delivery of spare parts for dosing pumps and any accessories in the dosing system.
• Technical support and on-site training, operation and maintenance.

APPLICATIONS:

• Chemical injection for various industry processes.

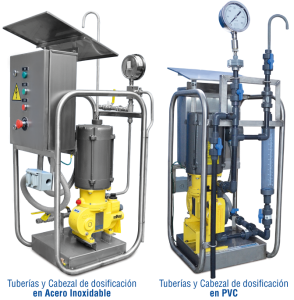

• Suction and discharge pipes in PVC or stainless steel.
• Dosing head: PVC, PVDF, 316SS, Alloy 20 and Alloy C.
• Metering pump with electronic actuator for remote controlling.
• Diaphragm rupture Detection system.
• Discharge line consists of: relief valve, check valve, pressure gauge, two-way manifold, discharge manifold.
• Installation of pulsation damper, flow indicator transmitter and / or pressure and backpressure valve.
• Explosion-proof motor NVXP (Non Ventilated Explosion Proof

Accessories:

Dosage portable systems Dosiport® can be supplied with:

• Shared suction manifold, for an indefinite number of dispensing equipment. As a modular system, it is possible to easily disconnect and remove  each unit independently. And, according to the required need of the Dosiport®, it can be accompanied by a storage tank for the chemical in polyethylene or stainless steel, a stirrer for simple mixtures and a cover to protect your computer from sun and rain.

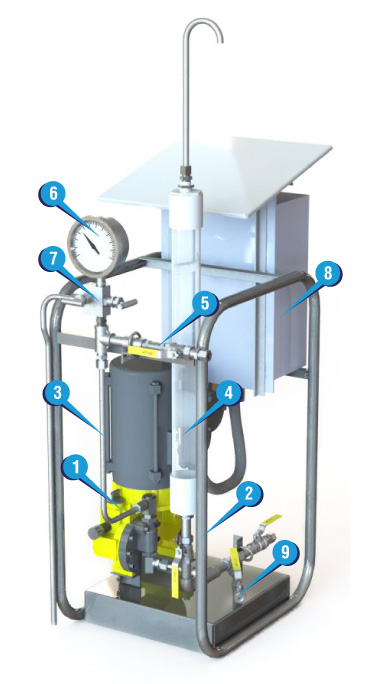

1. Electromechanical dosing pump (mROY® by Milton Roy)
Meets API Standard 675. With Teflon diaphragm actuated hydraulically and controlled by volume, it has a NVXP motor (Non Ventilated Explosion Proof) or TEFC (Totally Enclosed Fan Cooled).

Characteristics:
• Accuracy: ± 1% • Recommendation min. work: 10% of the flow range • Electrical connection: 230/460 V 3 PH, 60 Hz.

2. Structural Piping. Stainless steel.

3. Suction and discharge Pipeing in stainless steel (also available in PVC: Series Dosiport® MMP / 4X)

4. Calibration Column

5. Check valve

6. Pressure Gauge

7. Two-way Manifold

8. Switchboard NEMA 4X

9. “Y” type Filter with Purging

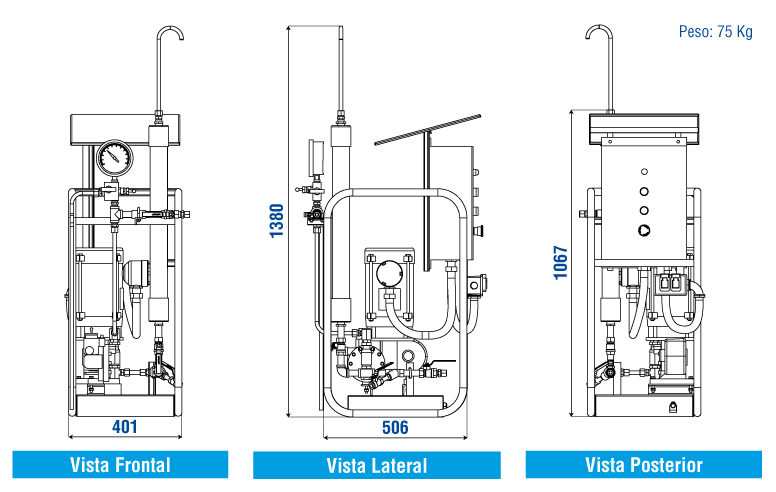

DIMENSIONS:

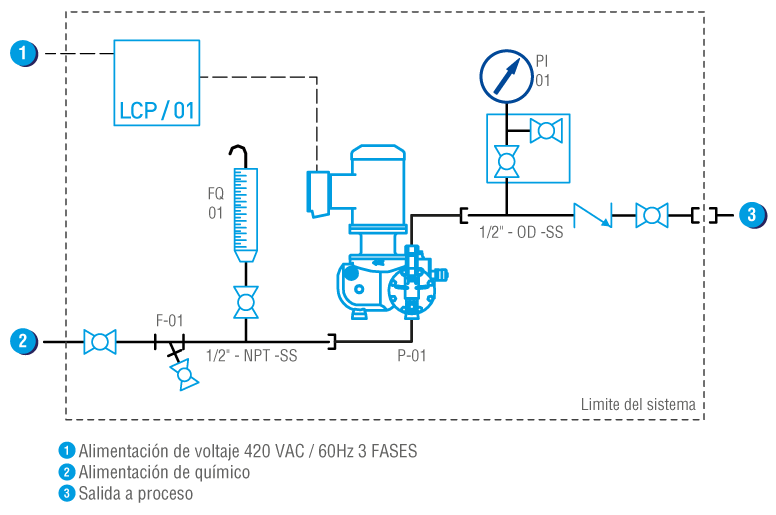

P&ID:

Low pressure up to 350 PSI (SS) and 150 PSI (PVC)

Low pressure up to 350 PSI (SS) high viscosity to 7,500 CP

High pressure up to 1800 PSI (SS)

High pressure up to 2000 PSI (SS)

High pressure up to 925 PSI (SS)

NOTE:

• (1) This metering pump model can handle 29 GPH @ 200 PSI
• (2) The SPM are above the 100 SPM required for API-675 standards. Must be verified as not to affect the molecular composition of the chemical to be dosed.
• (3) This dosing pump model can handle 1.4 GPH @ 700 PSI
