carver_pump_gh_series

GH SERIES

End Suction Centrifugal Pumps

carver

The GH is Carver’s horizontal, end suction pump series for handling water, oils, and chemicals in marine, process, and general industrial applications. Hydraulic performance extends to 2,500 GPM and is covered by twenty-eight sizes in cast iron, bronze fitted, 316 stainless steel fitted, and all 316 SS construction.

Hydraulics

  • Flows to 2,500 US GPM (570 m3/hr)
  • Heads to 520 ft. (160 m)
  • Efficiencies to 85%
  • Solids to 1.250″ diameter (32 mm)
  • Power to 150 HP (110 KW)
  • Speeds to 3,500 RPM

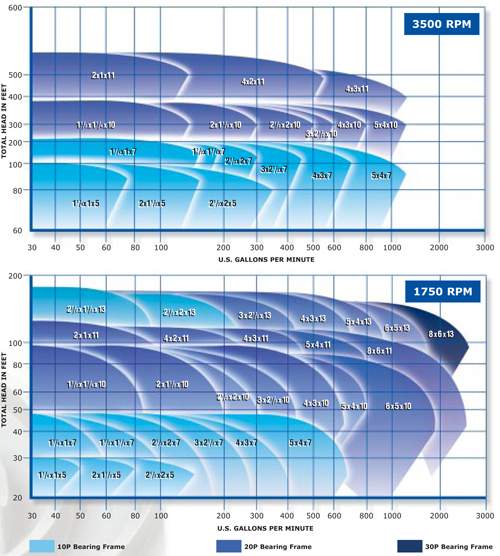

Hydraulic Coverage – Curve Process

  • Acids and solvents transfer
  • Bilge transfer
  • Black, green, and white liquor transfer
  • Caustic solution transfer
  • Commercial marine vessels
  • Fluid filtering
  • Light hydrocarbon transfer
  • Irrigation systems
  • Main and auxiliary engine cooling
  • Potable and raw water supply
  • Various OEM systems
