carver_pump_gvc_series

GVC SERIES

Vertical, Cantilevered Pump

carver

The GVC is based on the same product platform as our vertical sump and horizontal, end suction pumps. Hydraulic performance extends to 2,500 GPM at 1,750 RPM and is covered by twenty-five sizes in cast iron, 316 SS fitted, and all 316 SS construction. For added simplicity, the entire series is based on only three bearing frames and can be had in whole pump or modular kit form.

Hydraulics

  • Flows to 2,500 US GPM (570 m3/hr)
  • Efficiencies to 85%
  • Solids to 1.250″ diameter (32 mm)
  • Power to 150 HP (110 KW)
  • Speeds to 3,500 RPM

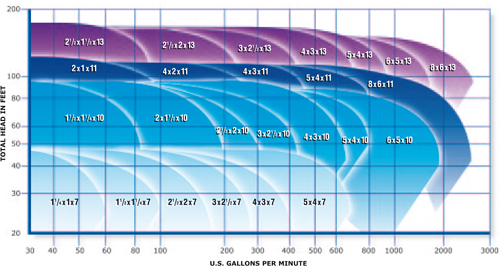

Hydraulic Coverage – Curve Process

  • Acids and solvents transfer
  • E-coat systems
  • Fluid filtering
  • Large vehicle washers
  • Lubrication for rotating equipment
  • Machine coolant recovery
  • Spray paint systems
  • Parts washers circulation
  • Ultra high purity water wash systems
  • Various other proprietary systems
